Digital Loupe

Olga Resnik
Sep 18
3 min read

In my previous posts, I explored how XR enhances consumer applications and took a step into professional-grade use cases, such as firefighter search and rescue operations.

Now, let’s move to a rapidly growing medical application — the Digital Loupe. We’re seeing more companies entering this space, but the transition from traditional optical solutions to digital systems presents significant system engineering challenges.

Medical devices require maximum ergonomics to reduce workload, enhance comfort, and improve usability for surgeons and medical professionals.

Digital loupe solutions, powered by XR, can offer magnification with added intelligence and flexibility — but only if designed with the right feature set.

Let’s dive in the XR Feature Analysis.

Use Case#5: Digital Loupe

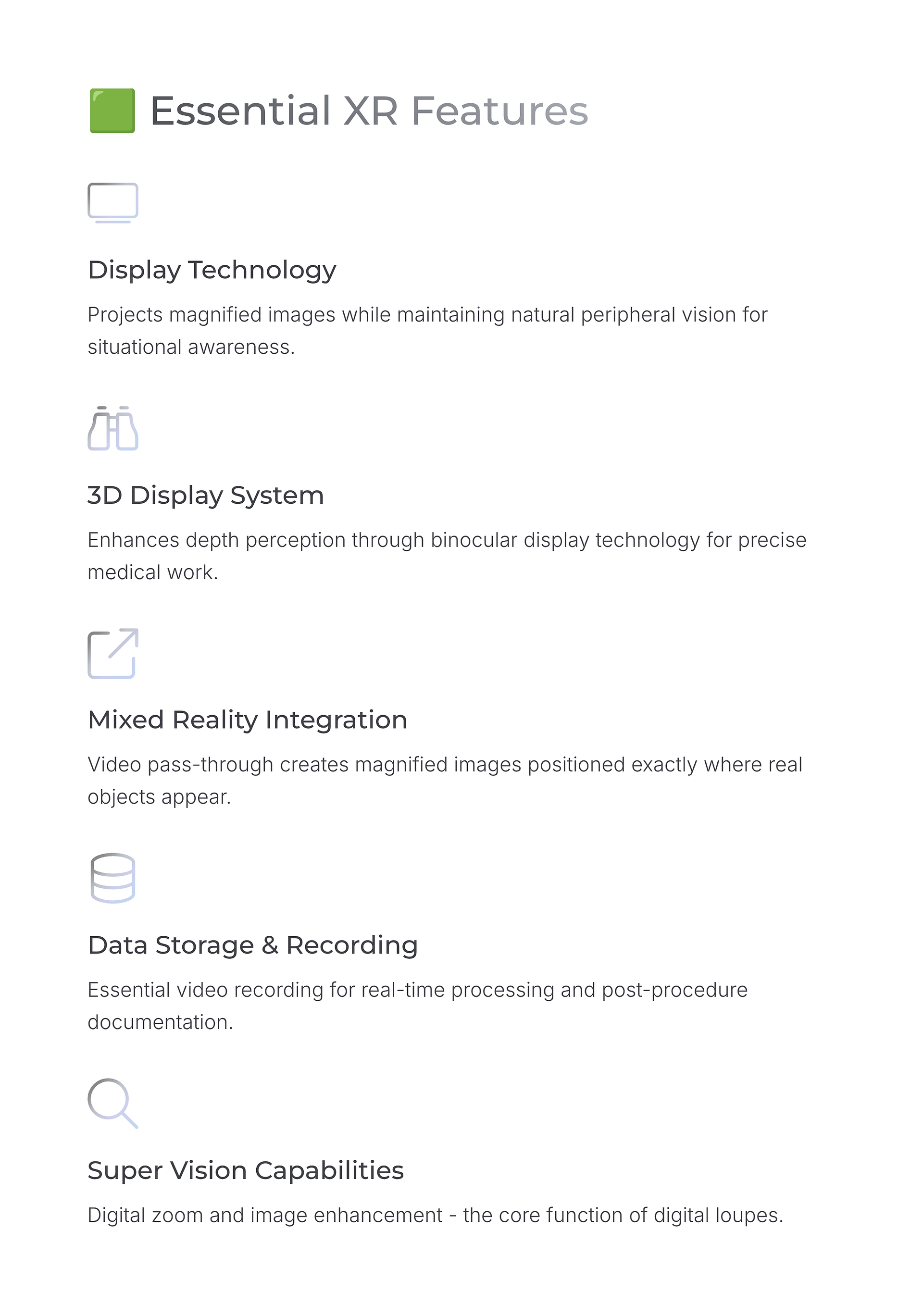

🟩 Digital Loupe Key Features

Display (Feature#1): Projecting the magnified image while maintaining natural peripheral vision for situational awareness.
3D Display (Feature#2): A 3D display enhances depth perception and utilizes the added values of a binocular display system.
MR (Feature#4): Implementing video pass-through for true Mixed Reality allows to create the magnified image placed on the same position as the real-world objects. Similarly to the optical loups that the users are familiar with today.
Data storage (Feature#6): Video recording for real-time processing and post-procedure review documentation is essential. Some will argue that this feature is not a Key Feature, but this really depends on the product and use case strategy. This point also helps to clarify how system architecture decisions impact the design and engineering, and the outcome product and user experience.
Super Vision (Feature#8): Enabling digital zoom and image enhancement is the key function of the digital lopes.

🟨 Optional Enhancements & Product Evolution

Some features allow for future capabilities expansion, improving usability and performance over time:

Smart Vision (Feature#7): AI-powered image analysis to assist in medical procedures can be helpful for training, smart assistance, reducing the cognitive workload and increasing working efficiency.
User Input (Feature#11): Additional features such as Tracking & navigation for tool-assisted operations can significantly enhance procedure accuracy, thus not essential in the basic operation.
Multi-User Collaboration (Feature#13): Can be used for team-based procedures and medical training to create additional values.

Why Trade-offs Matter?

Many existing off-the-shelf XR products focus on full immersion or high FOV, often leading to excessive cognitive load and suboptimal user experience in medical applications.

So, although it's very tempting to use off-the-shelf products that can serve as great POC or prototype milestones, the real deal-braker comes when your product is design specifically for the application of use. Then, all the extra features can be stripped off, all the requirements can be aimed to fulfill the functionality, and many aspects can be simplified.

A careful trade-off analysis between features and specific requirements is key to designing an optimal digital loupe solution.

XR Platform Design Partner

The tailor-made design carefully crafted for the specific use case can introduce a product, that will be optimized and will have just the required functions and features. Nothing more.

This approach provides unique solutions that will be more optimal, cost-effective and allows you a full control. This is what we offer for our customers at JOYA Team

The entry level to develop such a product is high, yet the experience and expertise we bring can jump-start your design, focus the design efforts and can help you minimize the design budget and timeline.
